3×3 Inch PVC Coated Wire Mesh Sheets ODM

Name: 33 Inch PVC Coated Wire Mesh Sheets ODM
Brand: HBGB
Price: 1 USD

Quality 3×3 Inch PVC Coated Wire Mesh Sheets ODM for sale

Brand Name : HBGB

Model Number : GB-008

Certification : ISO 9001

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 2000pcs per day

Delivery Time : 10-20days

Packaging Details : in bundle, by pallet, wooden case or customized

Product name : Welded Wire Mesh Panels

Raw material : low carbon steel wire

Finishing : PVC coated, PE coated

Color : green, grass blue, black, red, yellow and etc

Wire diameter : 0.5 - 6 mm

Hole shape : square or rectangle

Hole size : 1/4" -8", customized

Application : construction panel, or fence panel, cage

Height : 0.6-2.4m

Length : 1-6m

Contact Now

3 X 3 Inch 6 Gauge Pvc Coated Galvanized Welded Wire Mesh Panels

PVC Coated Welded Wire Mesh Panels Introduction:

PVC coated welded wire mesh is made of high-quality low-carbon steel welded together, the pvc or pe, pvc powder after curing the surface coated with a coating, with strong adhesion, corrosion resistance, coating color bright, full color, light and so on. Diverse colors, optional dark green, grass blue, black, red, yellow and many other colors.

3×3 Inch PVC Coated Wire Mesh Sheets ODM

All Types of Welded Wire Mesh:

Electro galvanized before welded wire mesh ,Electro galvanized after welded wire mesh,hot dip galvanized before welded wire mesh ,hot dip galvanized after welded wire mesh ,PVC coated welded wire mesh.

3×3 Inch PVC Coated Wire Mesh Sheets ODM

Welded Wire Mesh Specification:

Specification List of Welded Wire Mesh
Opening		Wire Diameter
In ''inch''	In Metric Unit (mm)	Wire Diameter
1/4'' x 1/4''	6.4mm x 6.4mm	BWG22-BWG24
3/8'' x 3/8''	10.6mm x 10.6mm	BWG19-BWG22
1/2'' x 1/2''	12.7mm x 12.7mm	BWG16-BWG23
5/8'' x 5/8''	16mm x 16mm	BWG18-BWG21
3/4'' x 3/4''	19.1mm x 19.1mm	BWG16-BWG21
1'' x 1/2''	25.4mm x 12.7mm	BWG16-BWG21
1-1/2'' x 1-1/2''	38mm x 38mm	BWG14-BWG19
1'' x 2''	25.4mm x 50.8mm	BWG14-BWG16
2'' x 2''	50.8mm x 50.8mm	BWG12-BWG16
Technical Note: 1,Standard Roll Length: 30m; Width: 0.5m to 2.0m 2,Packing: In waterproof paper in rolls. Custom Sizes and Package available at request

PVC coated welded wire mesh
Opening		Wire Diameter<BWG>
In ''inch''	In Metric Unit (mm)	Wire Diameter<BWG>
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21
3/4" x 3/4"	19mm x 19mm	16,17,18,19,20,21
1" x 1"	25.4mm x 25.4mm	15,16,17,18,19,20
Technical Note: 1.Standard roll length: 30m; width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

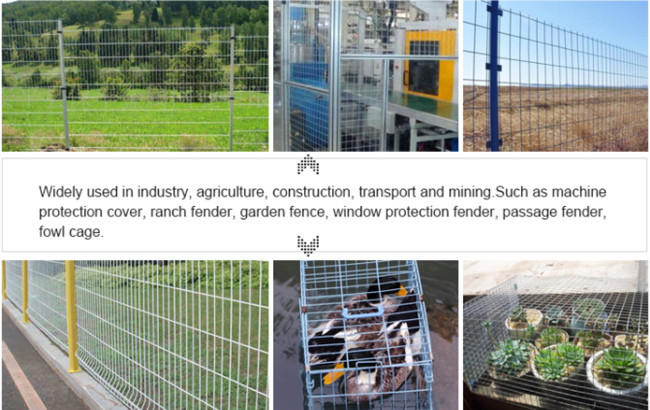

Application of welded wire mesh panel:

Widely used in industry, agriculture, construction, transport and mining .Such as machine protection cover, ranch fender, garden fence, window protection fender, passage fender, fowl cage.

3×3 Inch PVC Coated Wire Mesh Sheets ODM

Packing and loading:

3×3 Inch PVC Coated Wire Mesh Sheets ODM
